Apllication

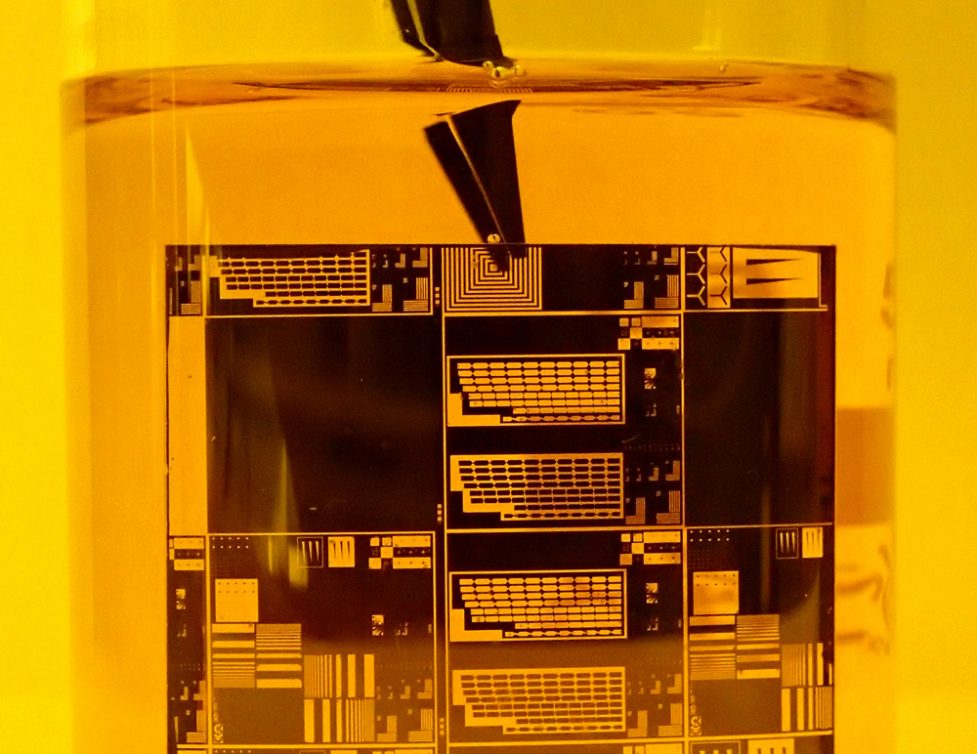

Chrome Etch 18 is designed for use in microlithographic applications where high reproducibility and tight dimensional control are required.

The ready-to-use solution, which is based on acidic cerium-(IV) salt, is compatible with standard positive and negative tone resist systems.

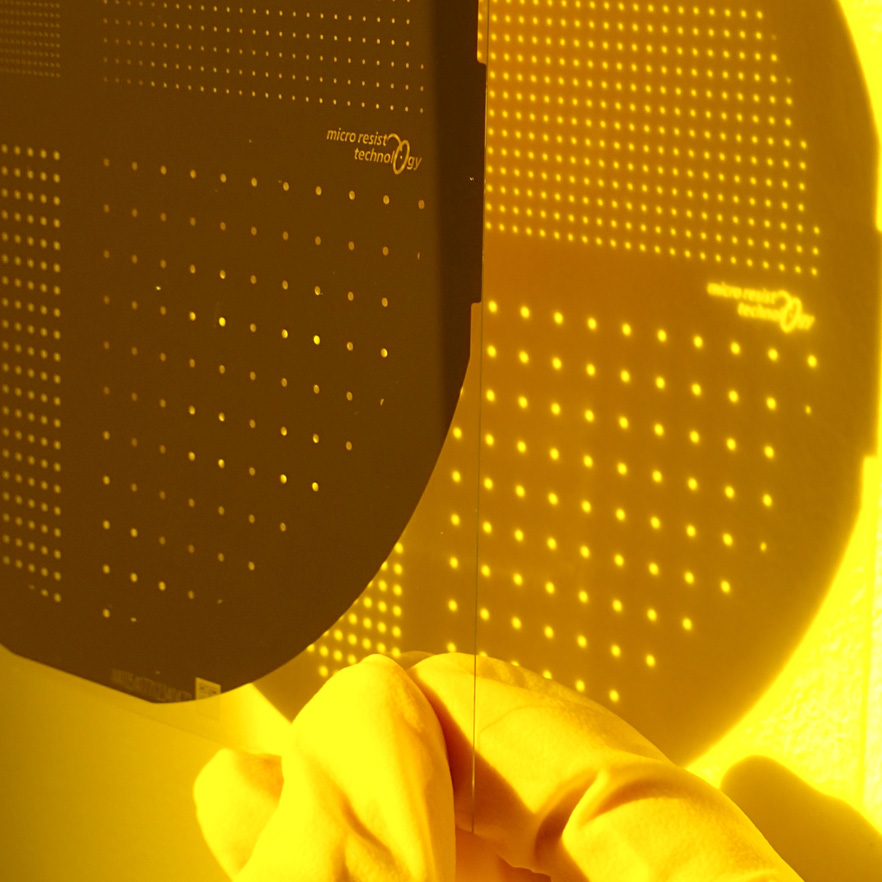

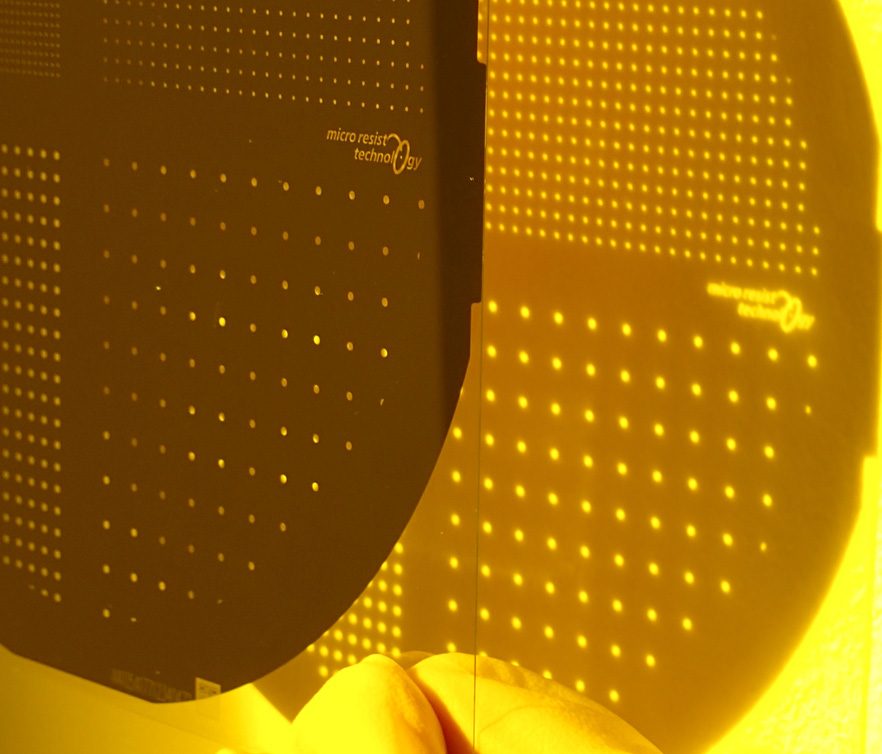

The principle application is in thin-film technology like micro optics, optical gratings and thin film circuitry. It is also commonly used in mask manufacturing for etching bright or anti-reflective chromium thin-films on mask-blanks. Besides etching chromium, it can also be used to etch chrome-nickel alloys, silver, copper, molybdenum and tungsten films.

Chrome Etch 18 is a safe and easy to handle etchant, requiring standard safety precautions.

Custom solutions are available upon request.

Download data sheet

Characteristics

- strongly acidic, aqueous based etching solution for chromium layers


Chemical and Physical Properties
 Appearance  clear, orange liquid
 Density (20°C)  1.15 g/cm³
 Filtration  0.45 µ (for tighter specifications, please contact mrt)
 Ce (IV)-content  43 g/L
 Total acidity  2 mol/L
 Acids  nitric acid, perchloric acid

Suitable Resists:
